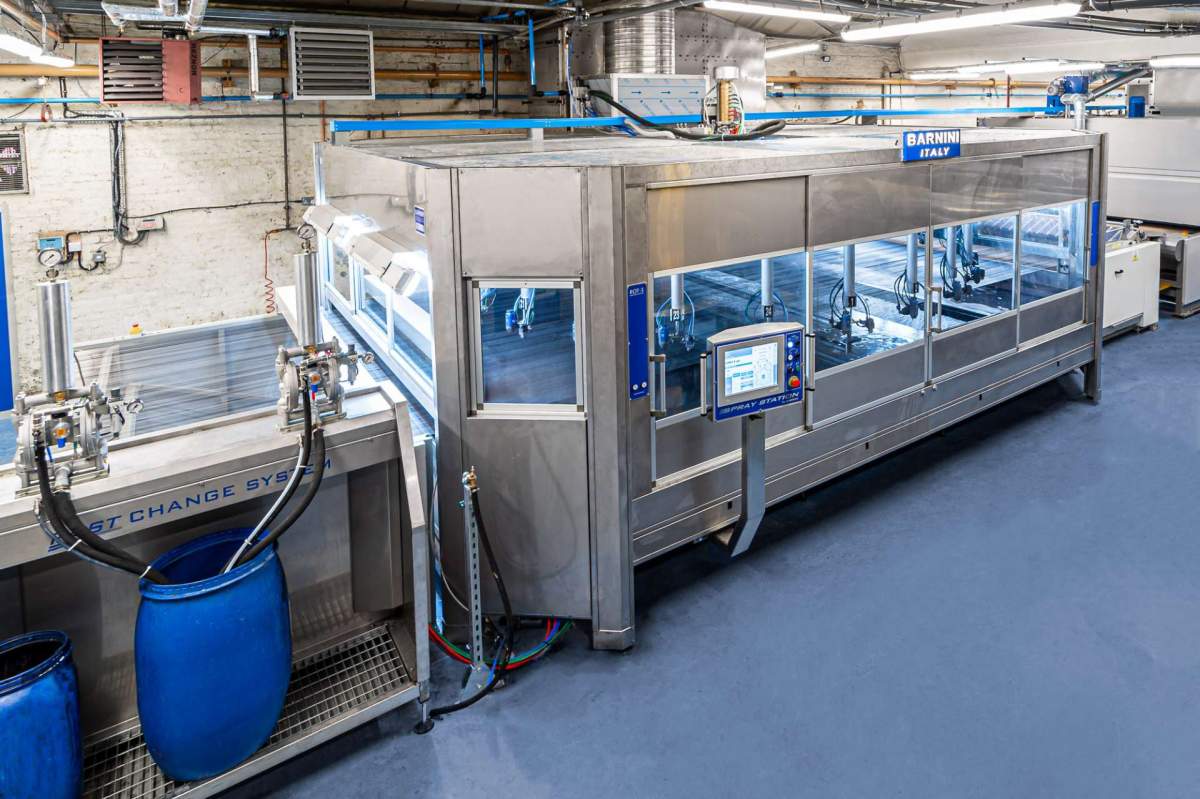

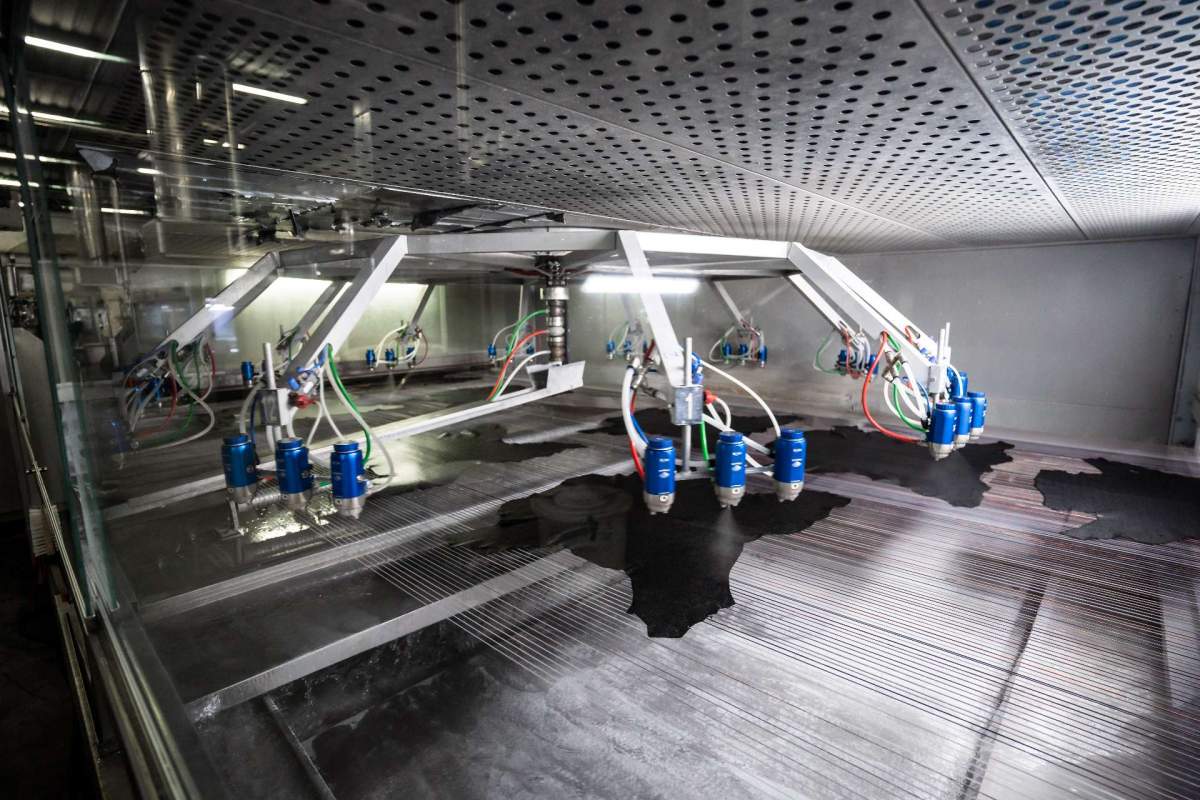

ECOLOGICAL SPRAY is the greenest and most efficient technological innovation for leather spraying. It is the result of a multi-year research and development project in collaboration with professionals, universities and companies from alternative sectors.
Continuous research and multiple synergies for development has given light to the most evolved solution for the progress of spraying systems.

The main benefits of the system are:

  • Better finishing quality
  • Drastic reduction of paint passes
  • Chemical product savings
  • Water saving
  • Time saving for spray booth cleaning
  • Drastic reduction of water contamination
  • Drastic reduction of air contamination

The innovative ECOLOGICAL SPRAY package includes:

  • B54 HVLP automatic spraying gun
    Accessory for B54 gun: Automatic chemical flow regulator

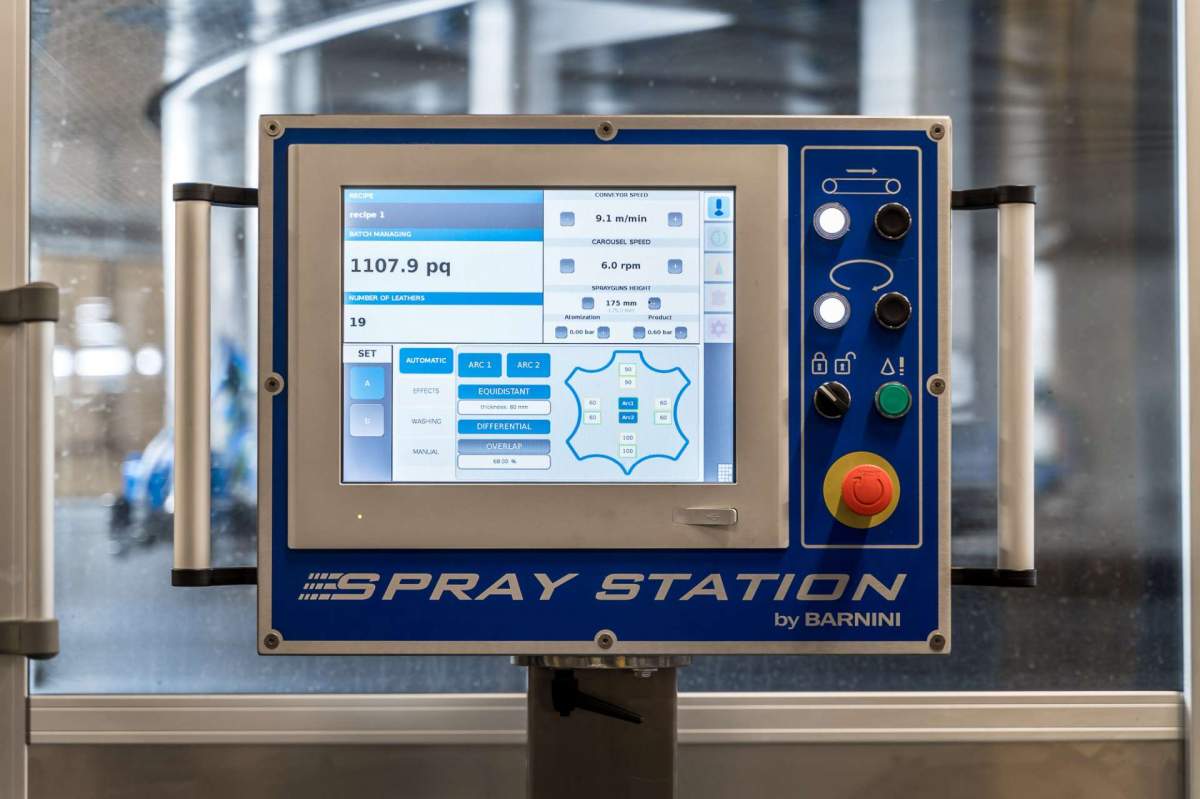

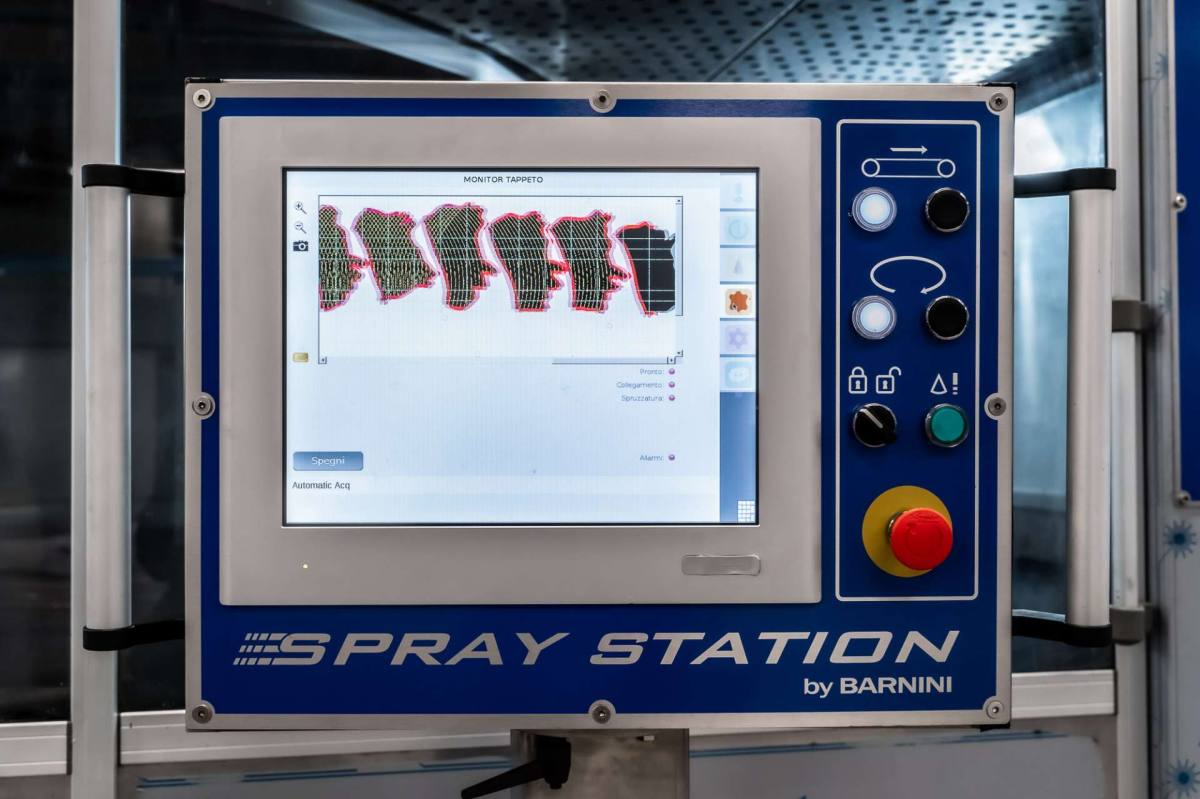

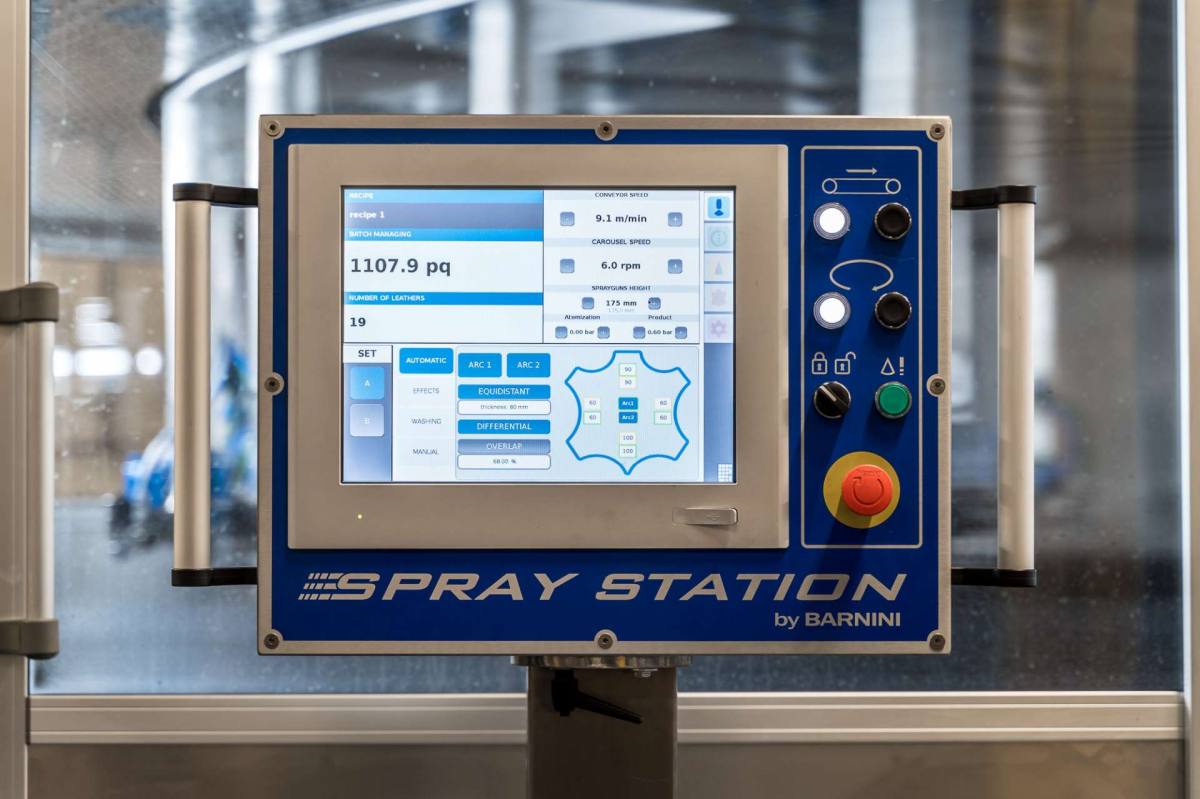

  • SPRAYSTATION Panel Pc with 15” Touch Screen
  • SMARTSCAN Leather reading bar with 5 mm pitch

Smartscan is the most defined and precise leather scanning bar in the world, the projectors and receivers are spaced at 5 mm. The system guarantees a perfect screen of all edges of the leather optimizing spraying and measurement.
Possibility on customer’s request to scan the leather through a linear camera by paying attention to the limits of the same (e.g. laminated leather or metallic or fluorescent)

it is the most advanced technology for optimizing the spraying process.
It guarantees production at minimum costs, control and saving of all parameters for traceability and reproducibility,
all on a simple and immediate 15 ”touch screen.

It is the “ALL IN ONE” solution able to control all the parameters of the spray line:

  • Paint economizer (leather edge margins, solenoid valve times)
  • Leather measurement with display page (sqft, sqmt, sqdm)
  • Paint distribution (overlap, air atomization, quantity of chemical for each gun)
  • Fast Change (color change, loading, unloading, washing of the paint circuit simultaneously with the work in progress)
  • Energy Saving (speed control of each motor group)
  • Control System (spray booth, anti-pollution system, drying tunnel, cooler)
  • Assistance in remote
    Note: Suitable for Industry 4.0 (interconnection with company management systems)

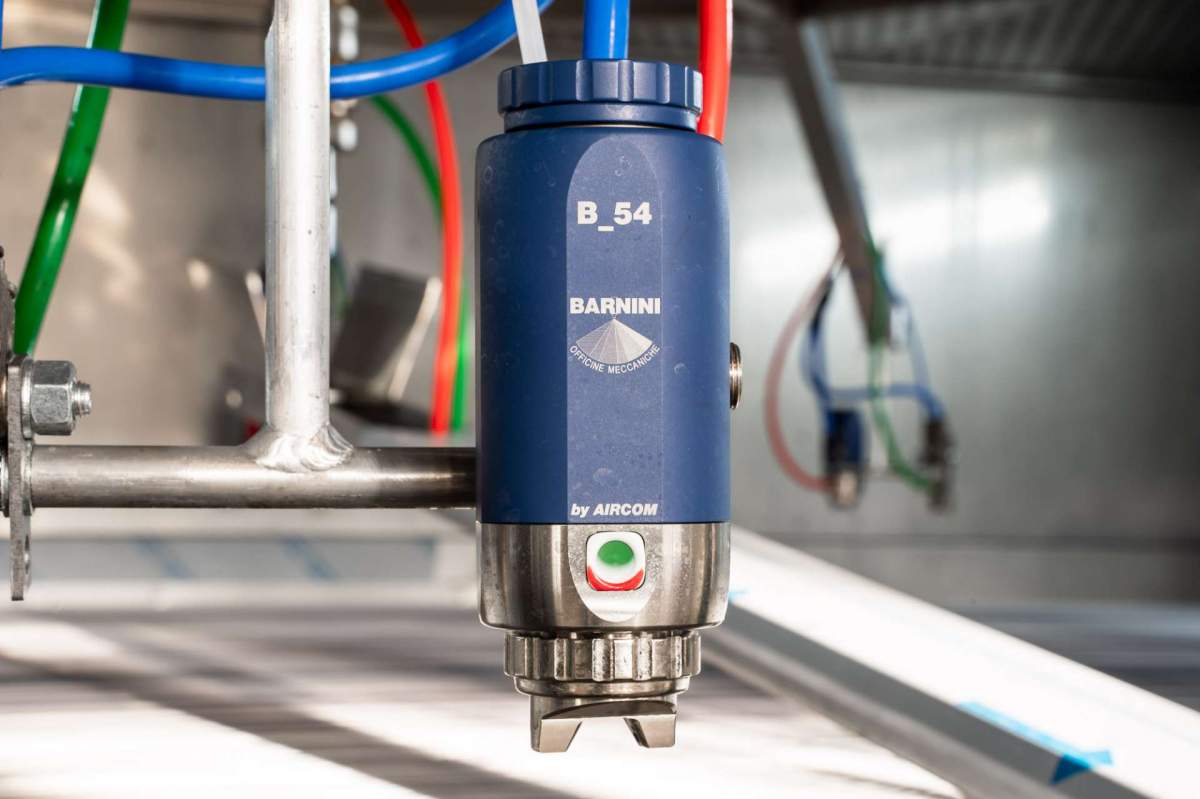

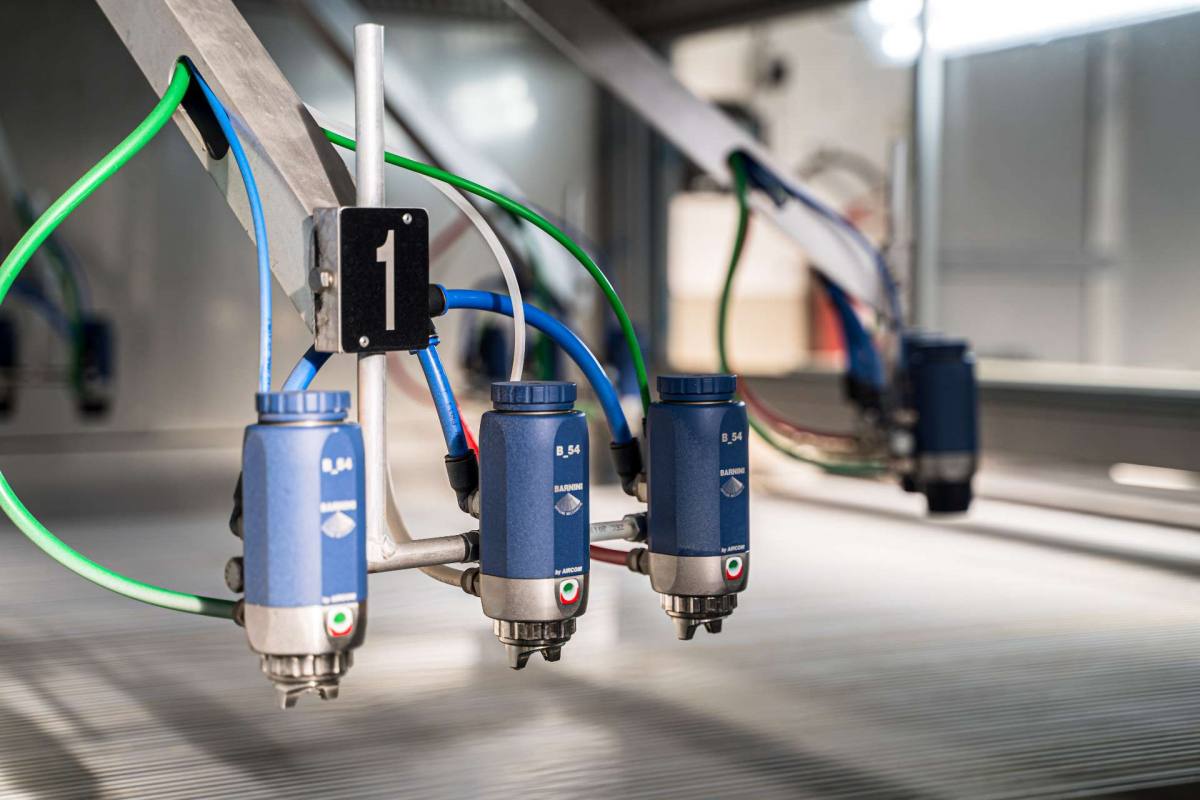

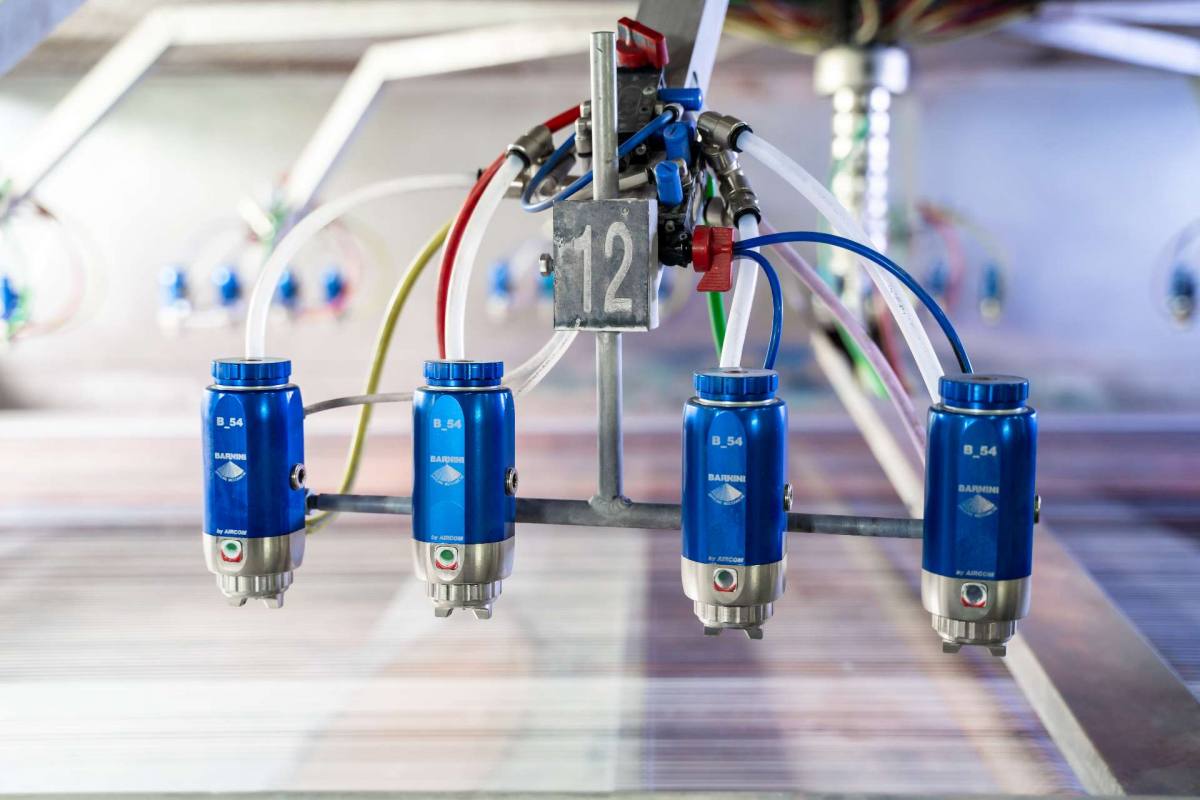

Automatic HVLP spray gun of high quality and reliability to meet the needs of most markets demanding. The automatic spray gun B54 guarantees maximum transfer efficiency, certified by Fraunhofer IPA.

Technical data
Atomization 0.3 – 0.9 bar
Min flow rate 0.3 g/min Max flow rate 1800 g/min
Max density 45” cup ford 4
Min application 0.5 g/sqft Max application 19 g/sqft

Application sectors: automotive, upholstery, footwear and fashion
Materials: gun body aluminum alloy, AISI 303 stainless steel for the paint passages.
Nozzle sizes: 0.6 / 0.7 / 0.8 / 1.0 / 1.2 / 1.5 / 1.8
Types of fan: RB head (mixed coating effect), P2B head (coating only)

Automatic regulator
The flow regulator allows the simultaneous regulation of the product flow on all guns. The automatic adjustment can be set from the touch screen and saved in the job recipes (Spray Station) can be applied to all guns except Airless and Airmix.
